DESCRIPTION

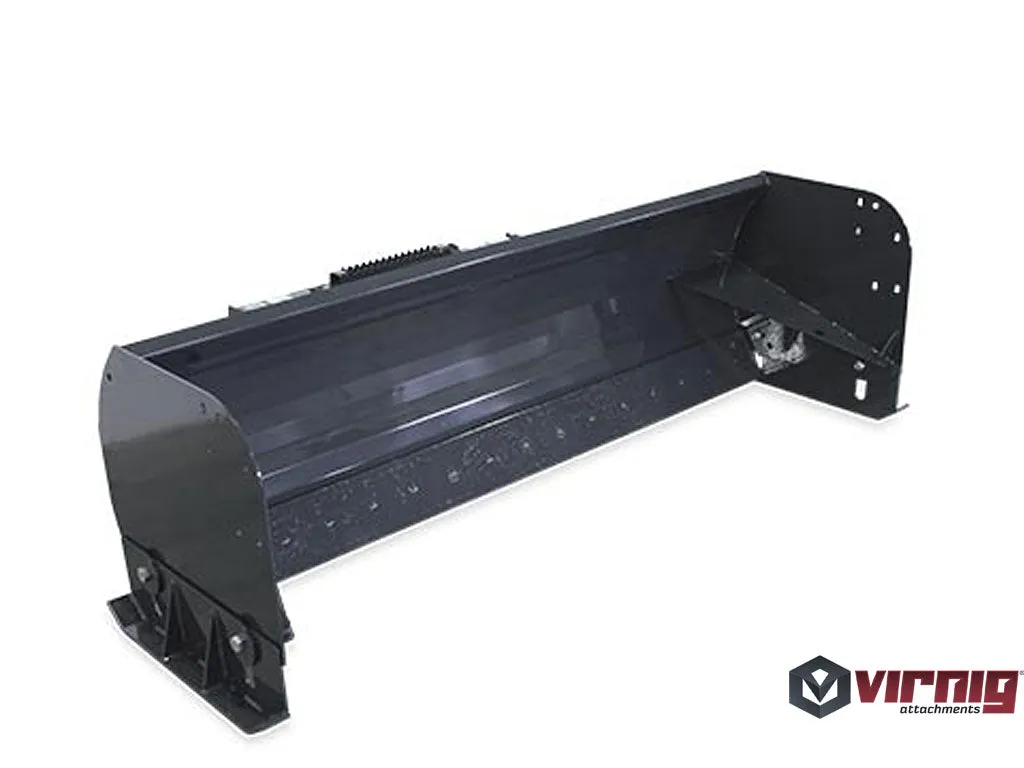

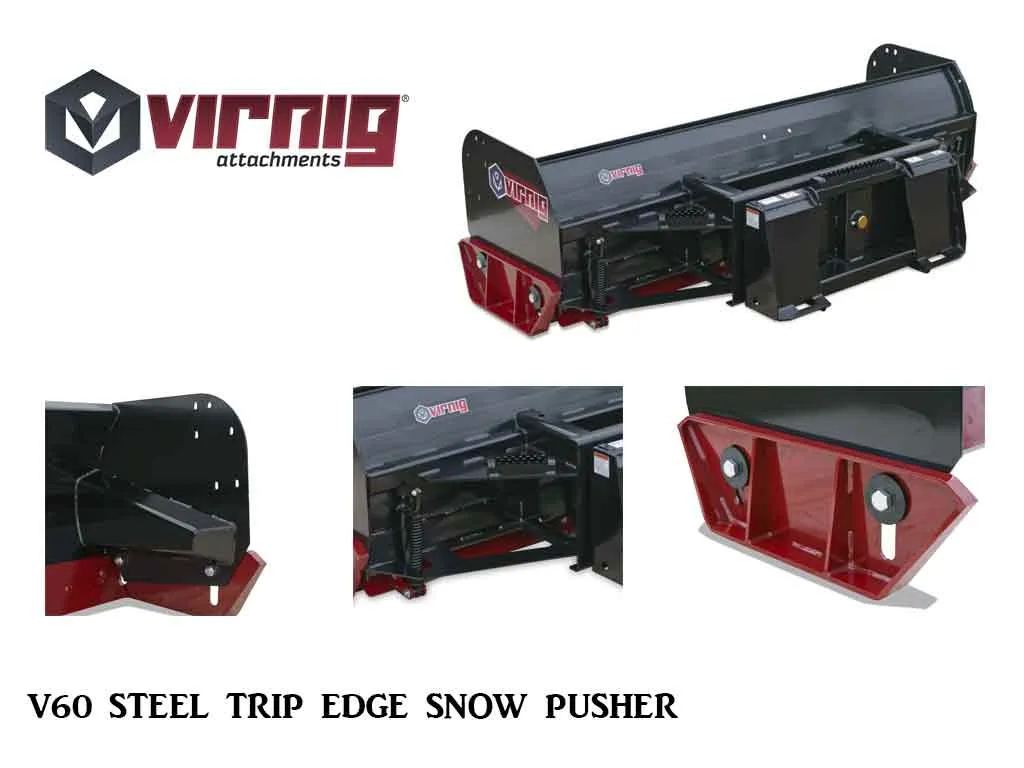

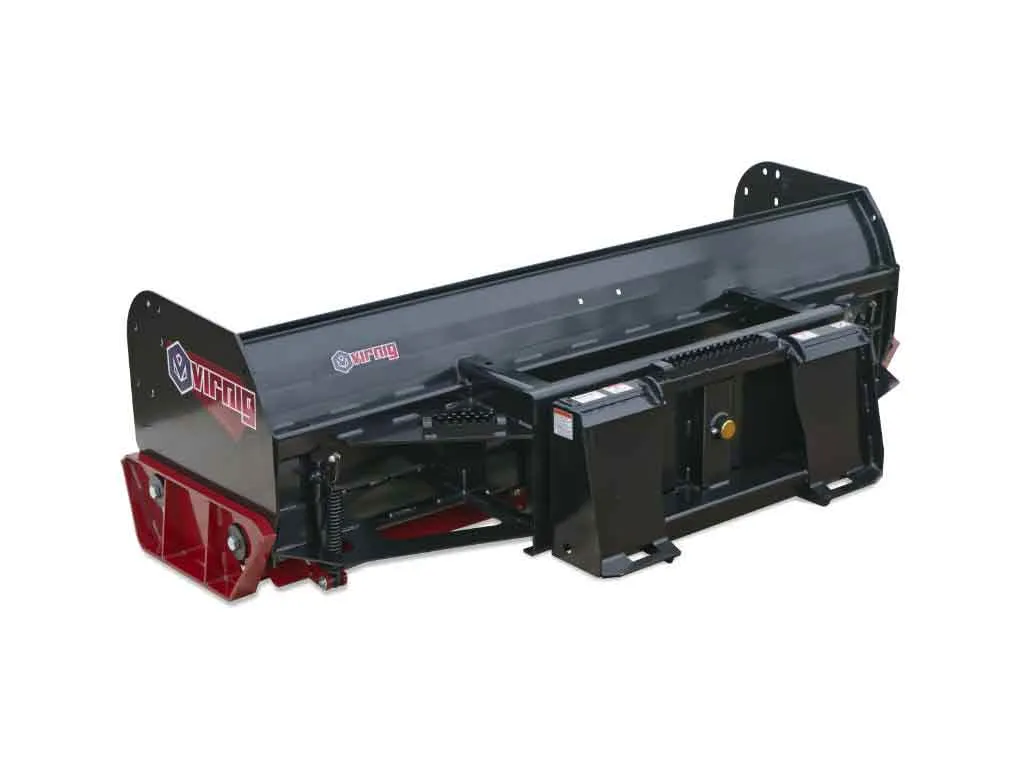

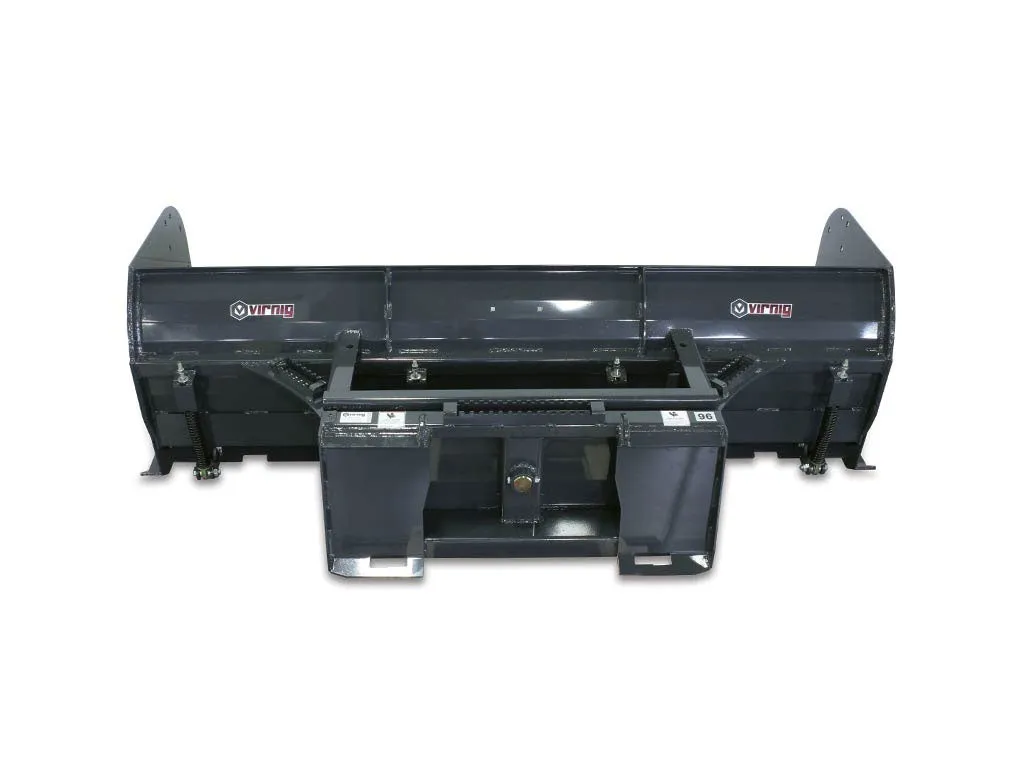

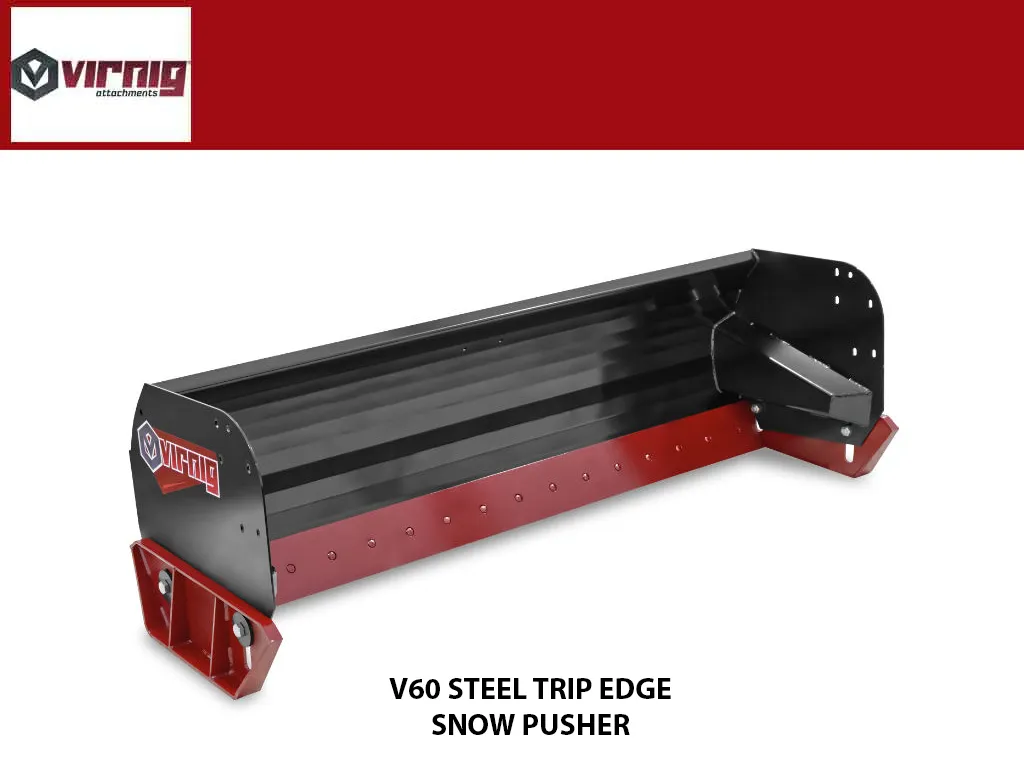

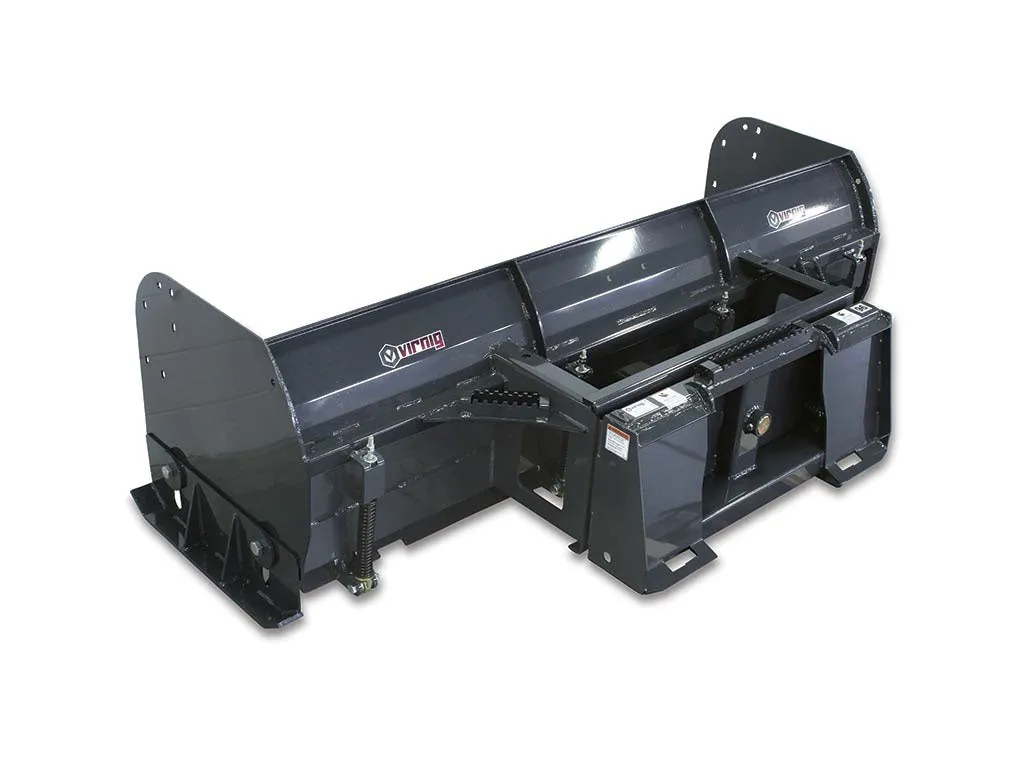

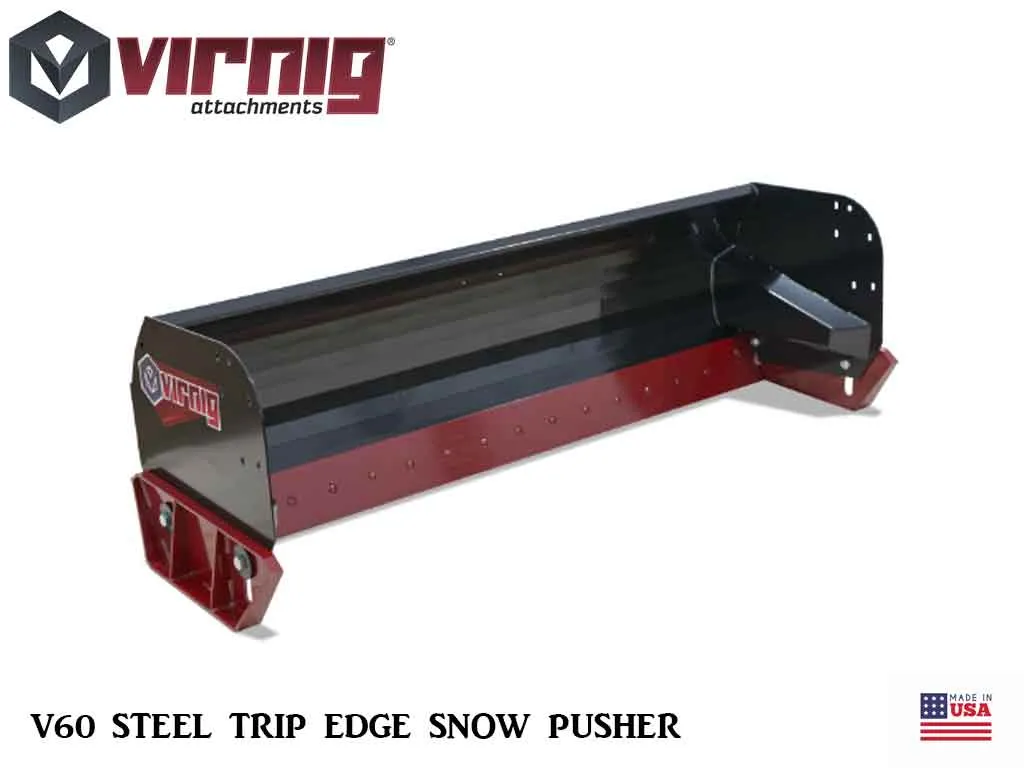

V60 STEEL TRIP EDGE SNOW PUSHER
Virnig V60 Steel Edge Snow Pusher is a snow blade and snow pusher hybrid ideal for scraping hard-pack snow.

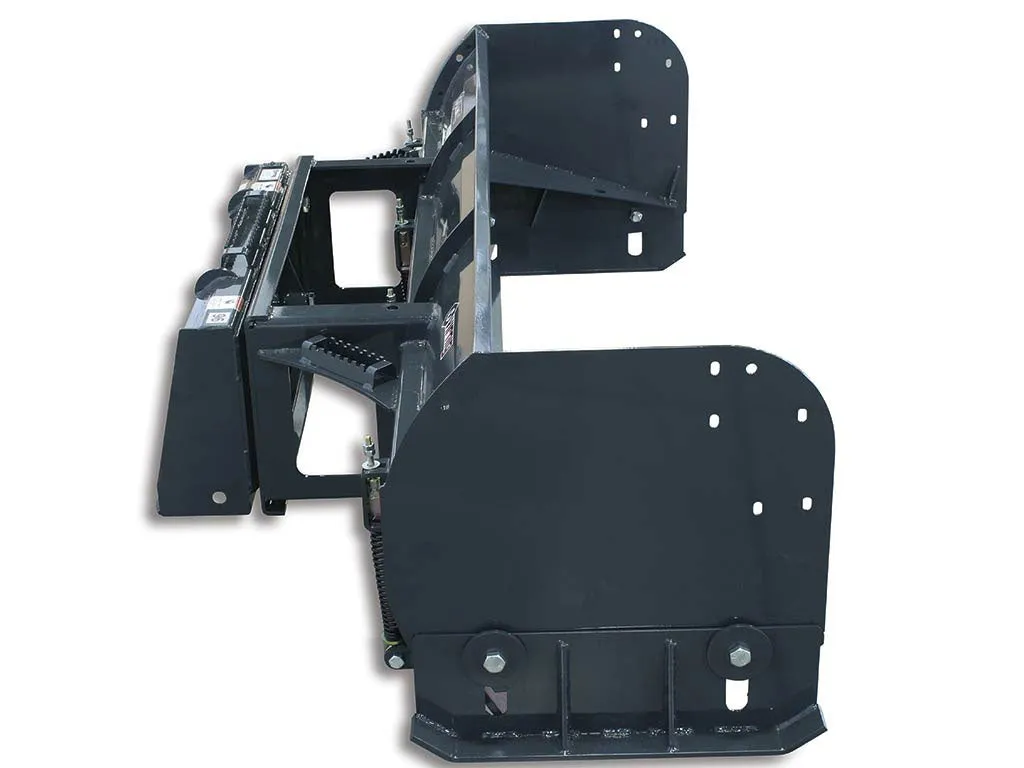

- Unique floating side plates and side-to-side oscillation collect more snow by keeping the steel edge in constant contact with uneven pavement.
- Edge never needs adjusting; it only needs to be reversed or replaced.

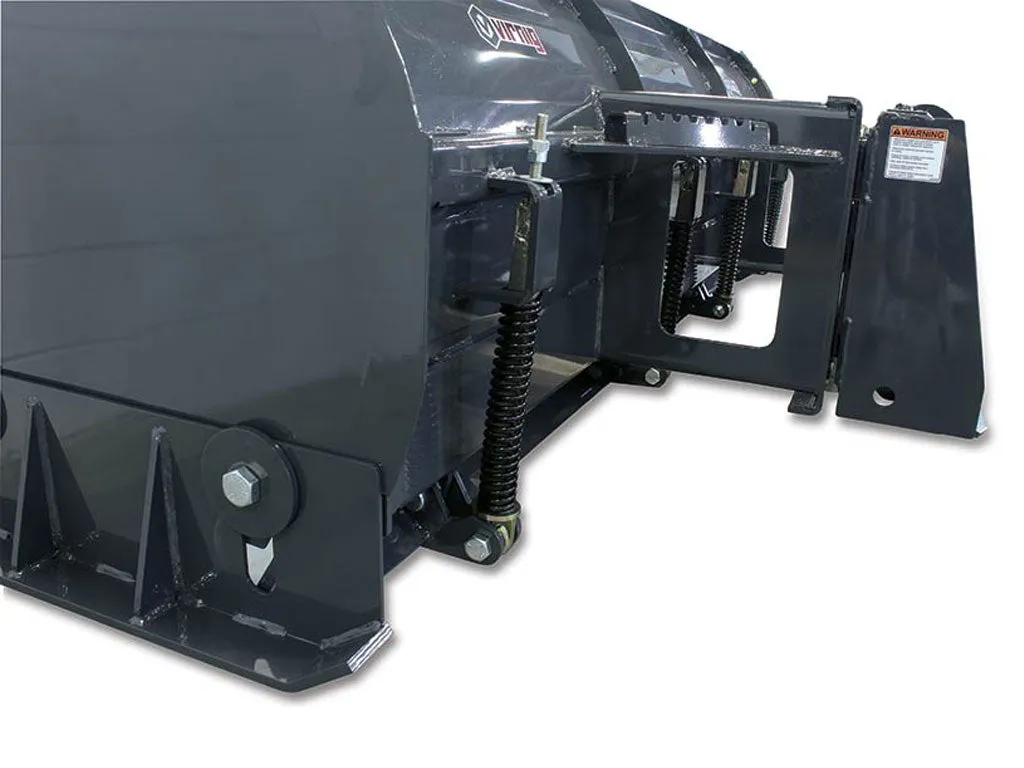

- Trip edge contains four compression springs with a rigid moldboard to help minimize plowing interruptions.
- Bracing on pusher sides and 1/2ˮ thick x 3ˮ wide skid shoes ensure attachment longevity.
- 5/8ˮ x 8ˮ reversible, replaceable steel edge allows 5 1/2ˮ of total wear.

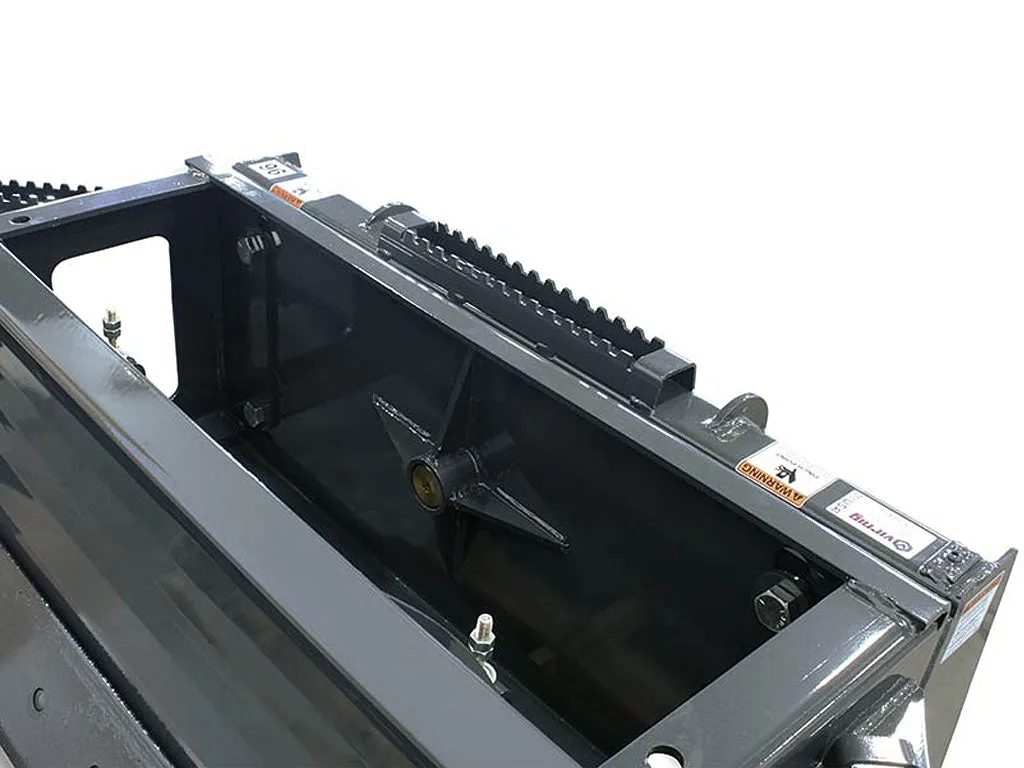

- Manufactured with a universal mount to fit most skid steer loaders.

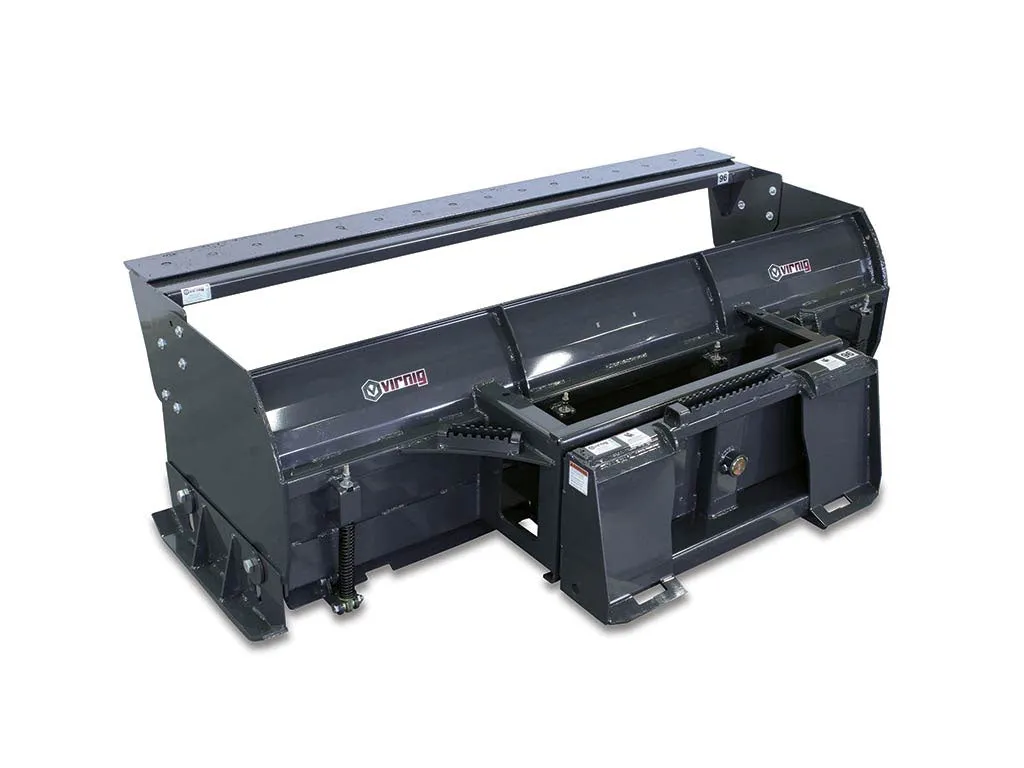

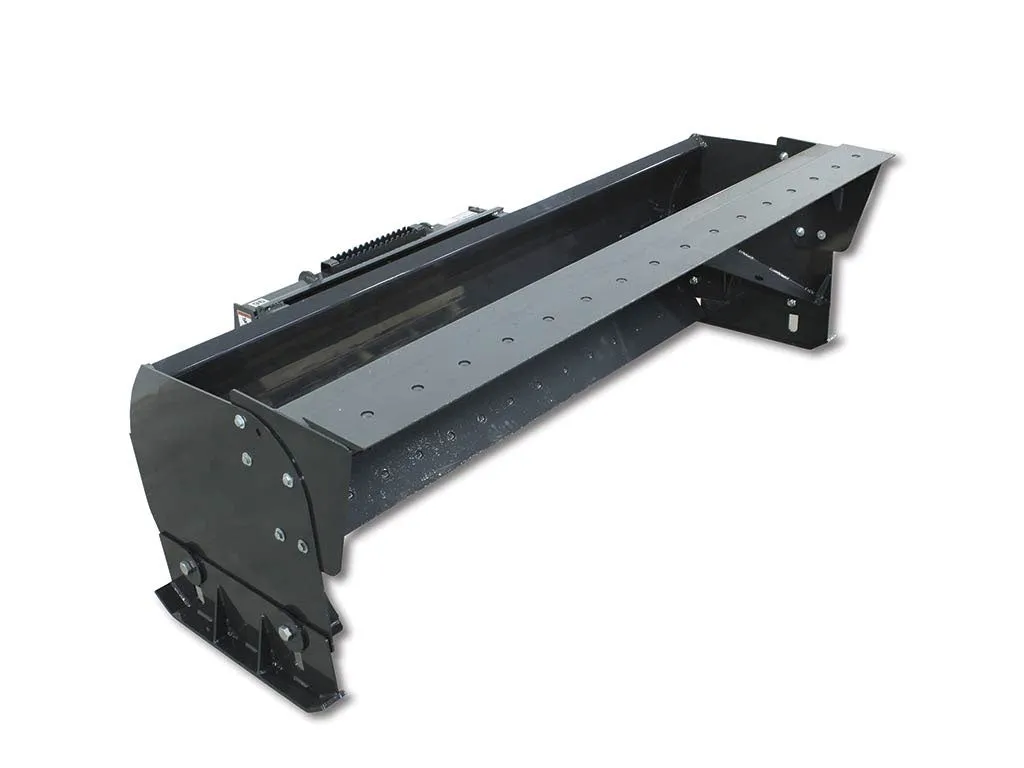

Option: Virnig Pull Back
- Enables precise snow cleanup along buildings or wherever necessary.
- Easy installation on any Virnig Steel Edge Snow Pusher.
- Designed to allow down pressure on steel edge.
- 5/8" x 8" reversible, replaceable steel edge allows 5 1/2" total wear.
SPECIFICATIONS
Snow Pusher Model | SESP 84 | SESP 96 | SESP 108 | SESP 120 |
Overall Pusher Width (Inches) | 92.5 | 104.5 | 116.5 | 125.4 |
Pusher Depth (Inches) | 54.4 | |||
Pusher Height (Inches) | 31.7 | |||
Inside Pusher Width (Inches) | 86.5 | 98.5 | 110.5 | 119.4 |
Inside Pusher Depth (Inches) | 32.2 | |||
Pusher Oscillation (Degrees) | /- 4 | |||
Moldboard Thickness (Inches) | 0.19 | |||
Cutting Edge (Inches) | 5/8” x 8” Steel | |||
Approximate Weight (Pounds) | 1120 | 1275 | 1340 | 1380 |
Recommended Loader Capacity (Pounds) | Greater than 1500 pounds |
Pull Back Model | SEP 84 | SEP 96 | SEP 108 | SEP 120 |
Overall Pull Back Width (Inches) | 86.0 | 98.0 | 109.9 | 119.0 |
Inside Pull Back Width (Inches) | 85.4 | 97.4 | 109.4 | 118.3 |
Cutting Edge (Inches) | 5/8 x 8 Steel | |||
Approximate Weight (Pounds) | 265 | 295 | 325 | 350 |
