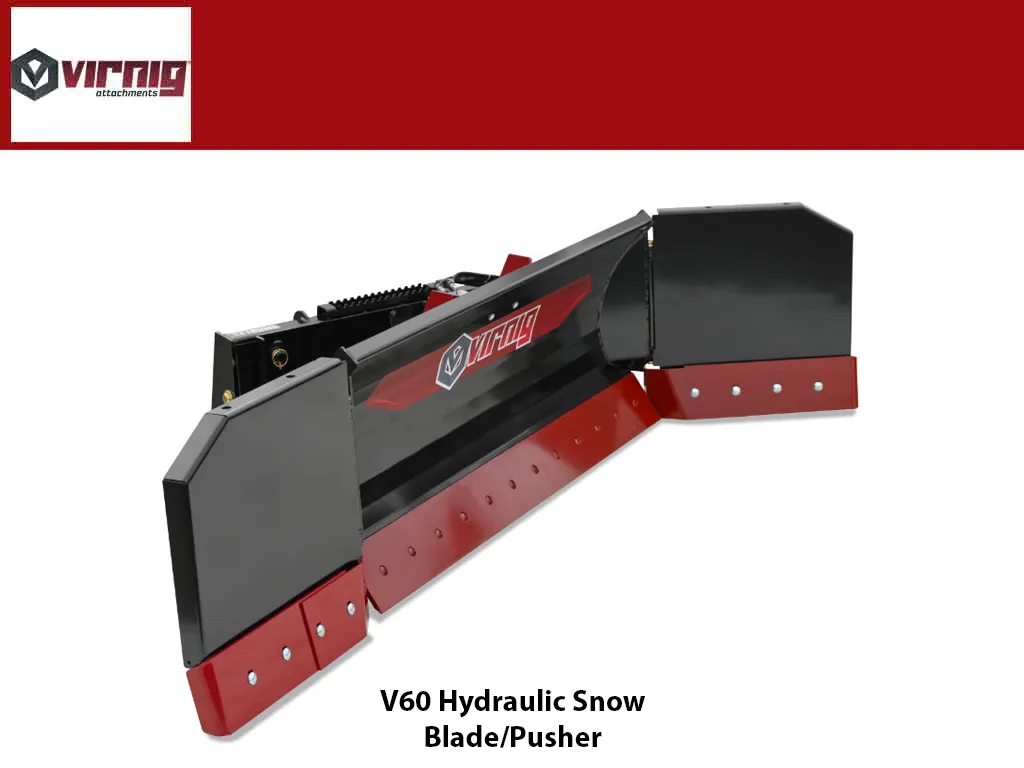

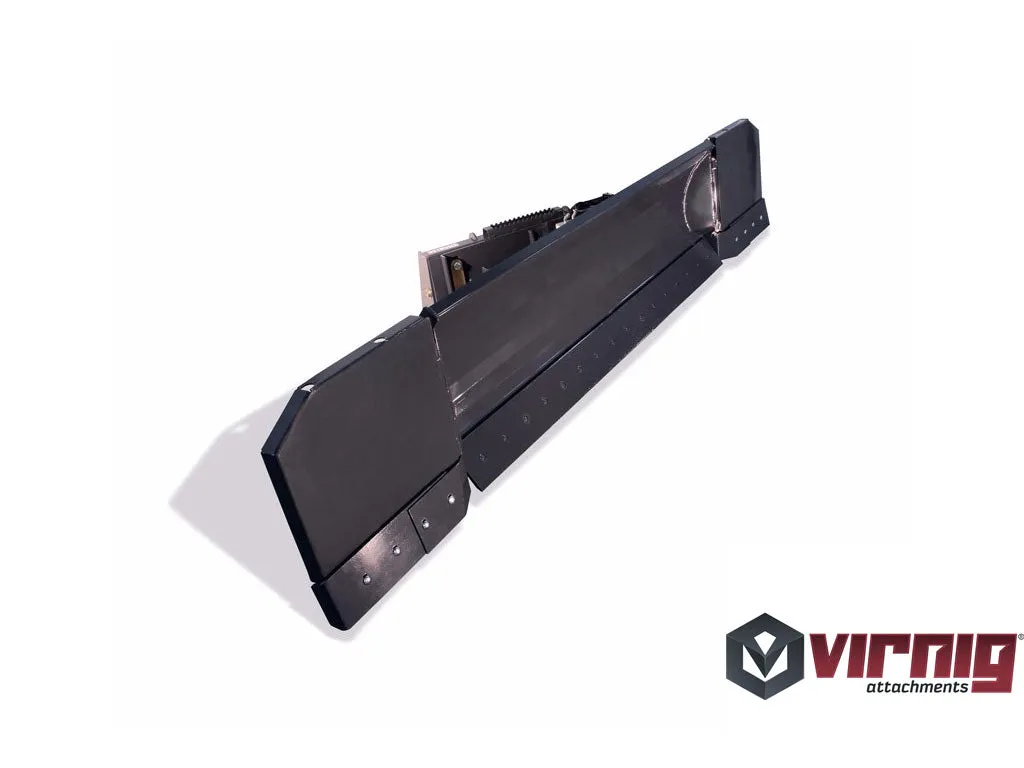

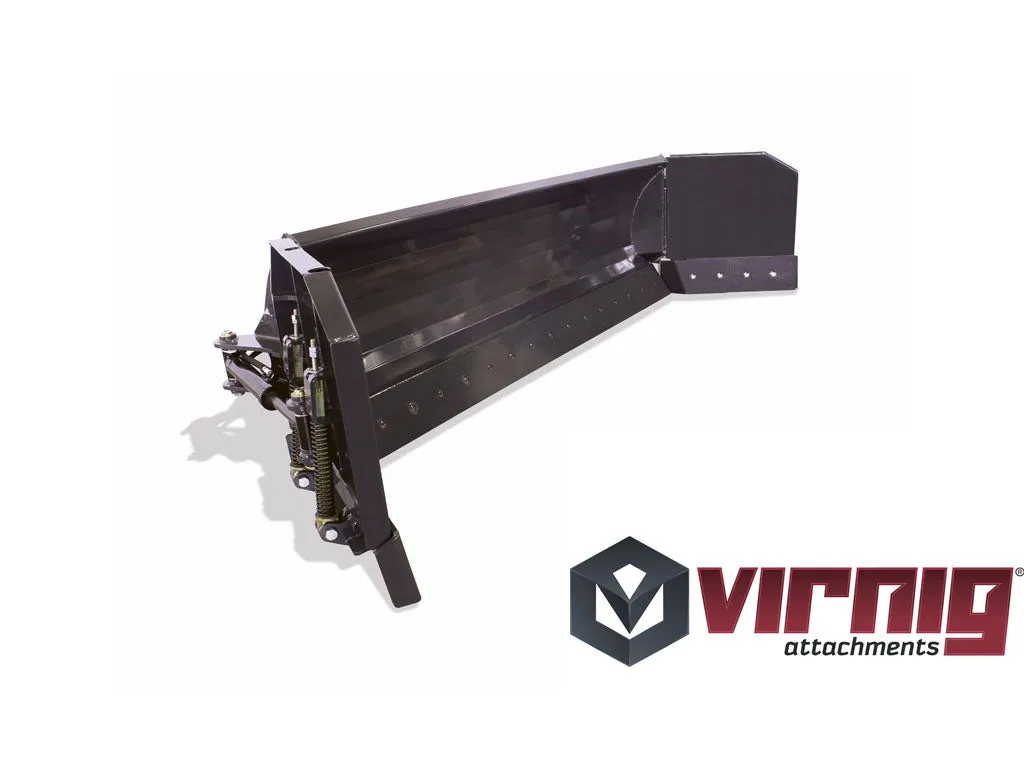

DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS

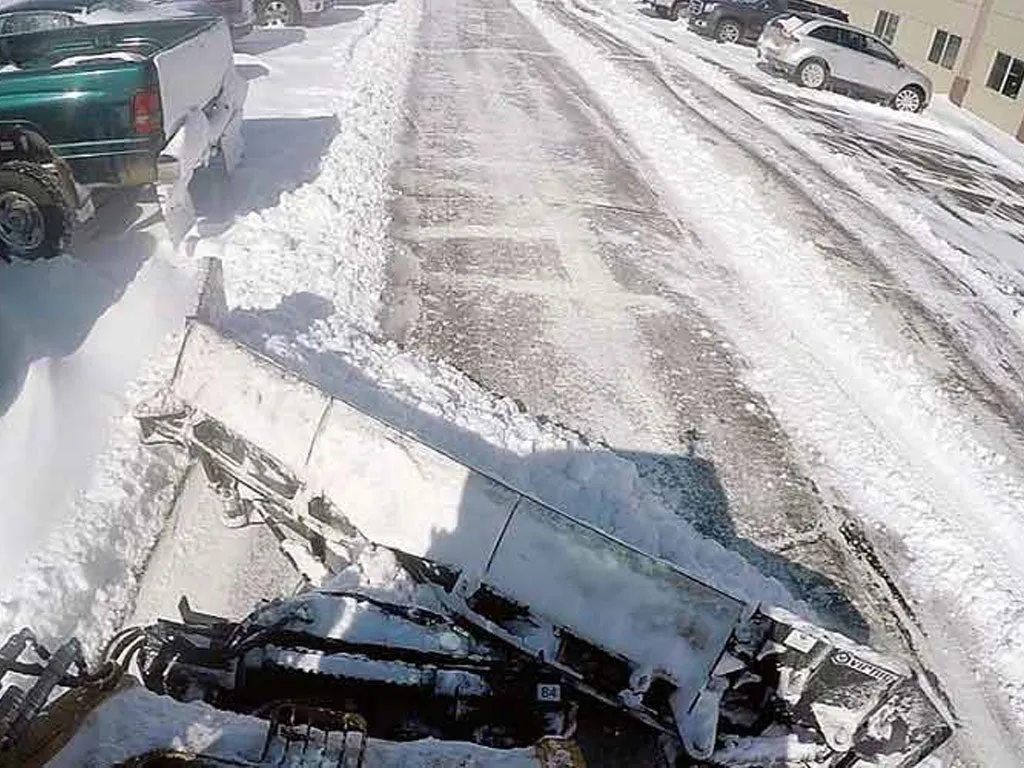

- Electric over hydraulic control allows independent angling of each wing. This also allows the entire blade to be angled separately from the wings for infinite blade and wing angle configurations.

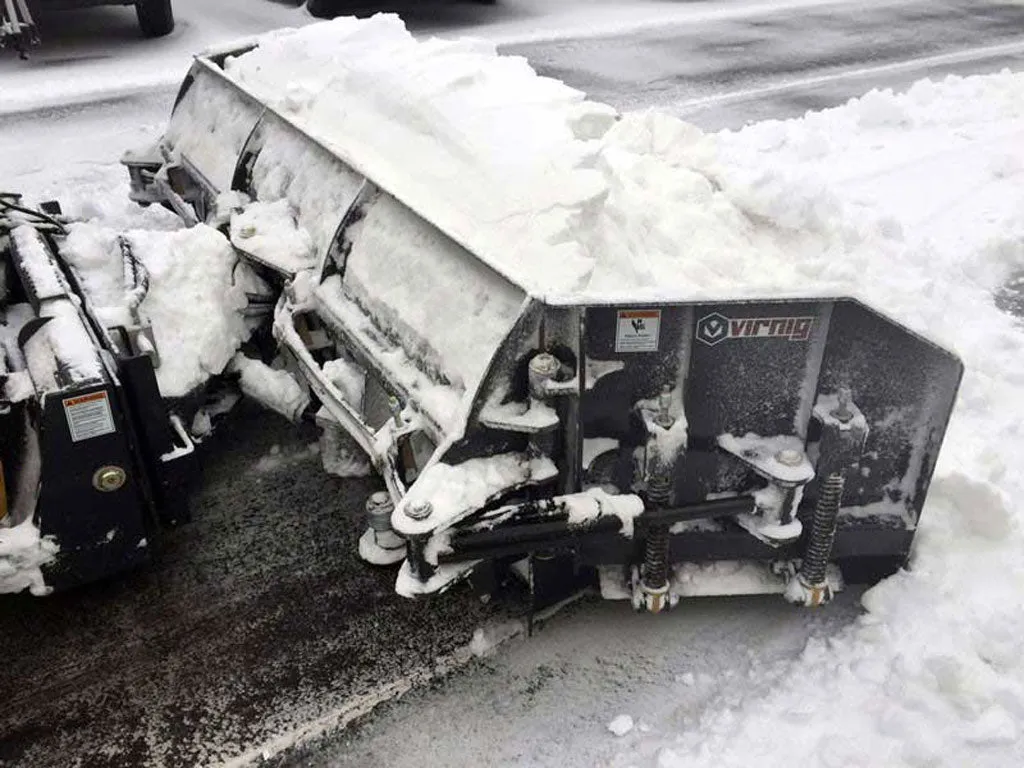

- Floating frame link maintains full blade contact when wings are angled, while also allowing down pressure when the wings are straight.

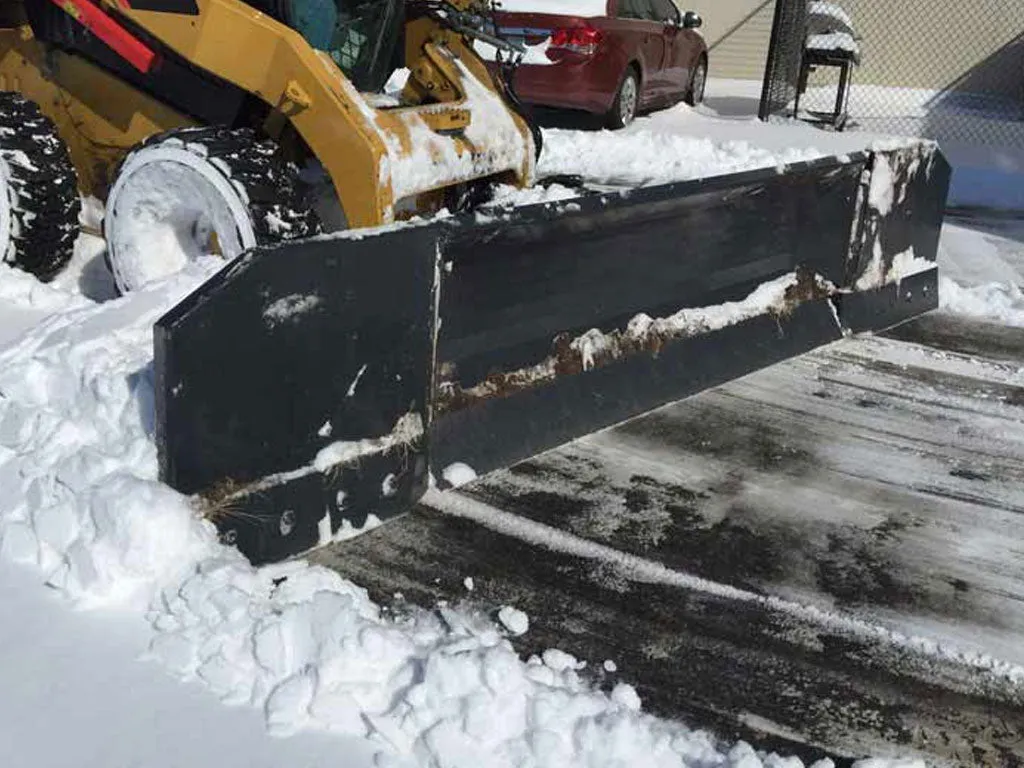

- Oscillation and adjustable cast skid shoes allows edge to follow uneven surfaces.
- Hydraulic crossover relief valve protects the attachment by absorbing shock and angling the entire blade if a curb or other object is struck.

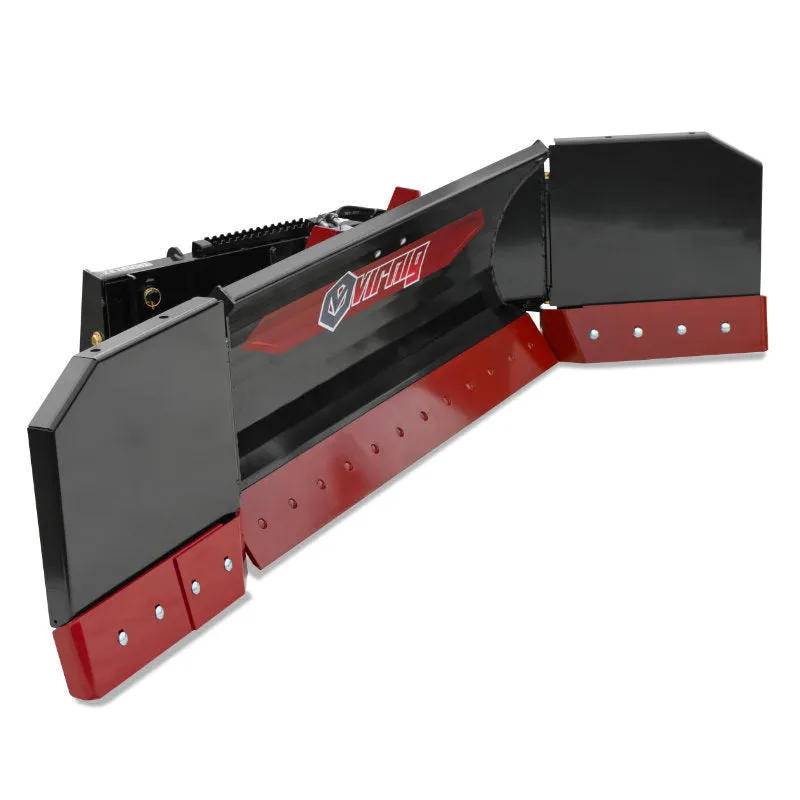

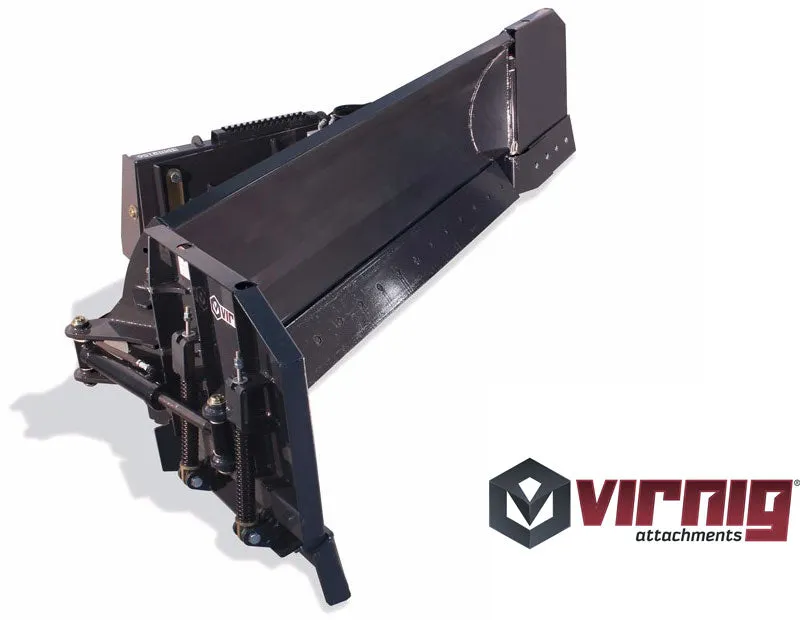

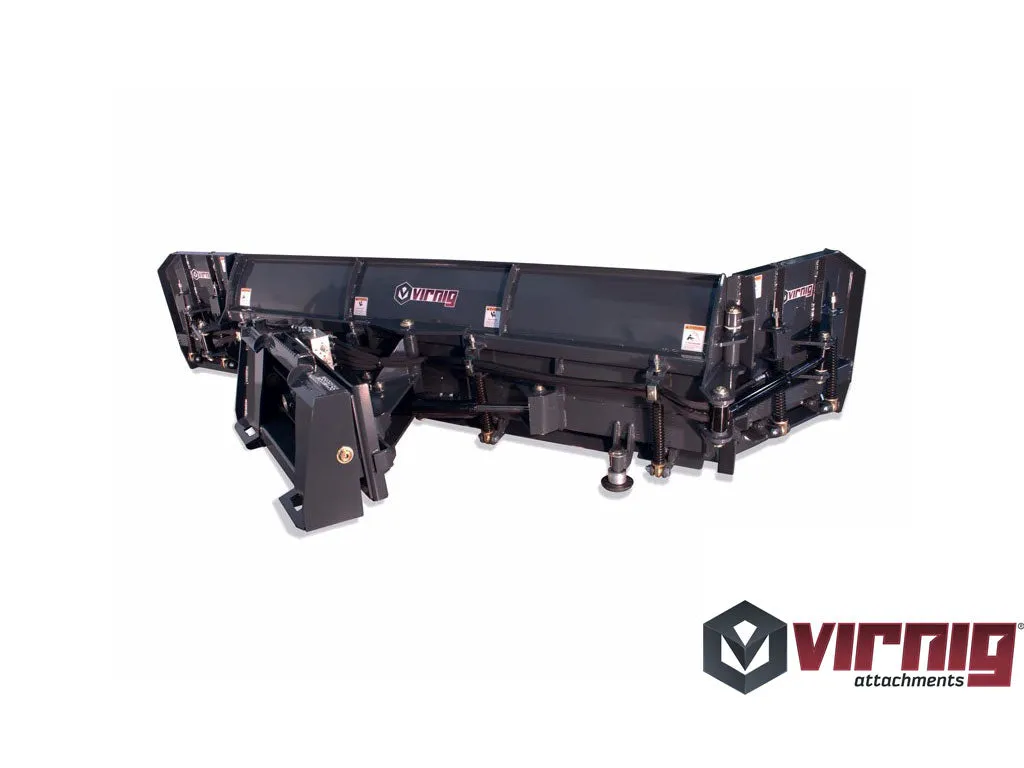

- Three blade sections with individual trip edges utilizing eight total compression springs.
- Middle section comes standard with 5/8” x 8” reversible, replaceable bolt-on wear edge. Design allows for 5-1/2” of total wear.
- Wings come standard with 1/2” x 7-3/4” reversible, replaceable bolt-on wear edge made from high-tensile steel. Design allows for 5-1/2” of total wear.
EDGE OPTIONS
- Steel Edge Installed
- 5/8" x 8ˮ steel bolt-on edge allows 5 ½” of total wear
- Edge is quickly reversed or replaced.
- Poly Edge Installed
- Replaces standard steel cutting edge.
- 1” x 7 3⁄4” reprocessed UHMW (Ultra High Molecular Weight Polyethylene) allows 5 1⁄4” of total wear.
- Reversible and replaceable like a steel bolt-on edge.
AVAILABLE OPTIONS
- 12 V Accessory Plug - Utilizes 12 volt accessory plug, cigarette lighter, in cab for power, includes magnetic box with switch for control
- Power Source - Utilizes power source (battery) of loader for power, includes 12 volt accessory outlet, 12 volt accessory plug and magnetic box with switch for control
SPECIFICATIONS
| Model | HSBP 120 | HSBP 132 | HSBP 144 | HSBP 156 |
| Overall Blade Width (Inches) | 124.5 | 136.5 | 148.5 | 160.5 |
| Moldboard Width (Inches) | 62.0 | 74.0 | 86.0 | 98.0 |
| Blade Height (Inches) | 31.0 | |||
| Blade Angle (Degrees) | /- 30 | |||
| Wing Angle (Degrees) | /- 60 | |||
| Width at Full Angle Both Wings Open (Inches) | 110.0 | 120.5 | 131.0 | 141.5 |
| Width at Full Angle One Wing Open (Inches) | 86.0 | 96.5 | 107.0 | 117.5 |
| Width at Full Scoop (Inches) | 96.5 | 108.5 | 120.5 | 132.5 |
| Moldboard Thickness (Inches) | 0.19 | |||
| Cutting Edge (Inches) | Steel or Polyethylene | |||
| Wing Cutting Edge (Inches) | 1/2 x 7 3/4 High Tensile Steel, Bolt-on | |||
| Blade Oscillation (Degrees) | /- 4 | |||
| Float Link Angle (Degrees) | /- 5 | |||
| Approximate Weight (Pounds) | 1540 | 1600 | 1650 | 1705 |
| Recommended Loader Capacity | Greater than 1800 pounds | |||
