DESCRIPTION
UltraPlow
For Skid Steers
6,000 – 14,000 lb. Machinery
Ultra Series is the flagship of our product line. For those looking for a snow plow without compromise that is suitable for the largest skid steers on the market today! Tested and time proven on the industry’s largest skid steers, the Ultra Series can handle it all!

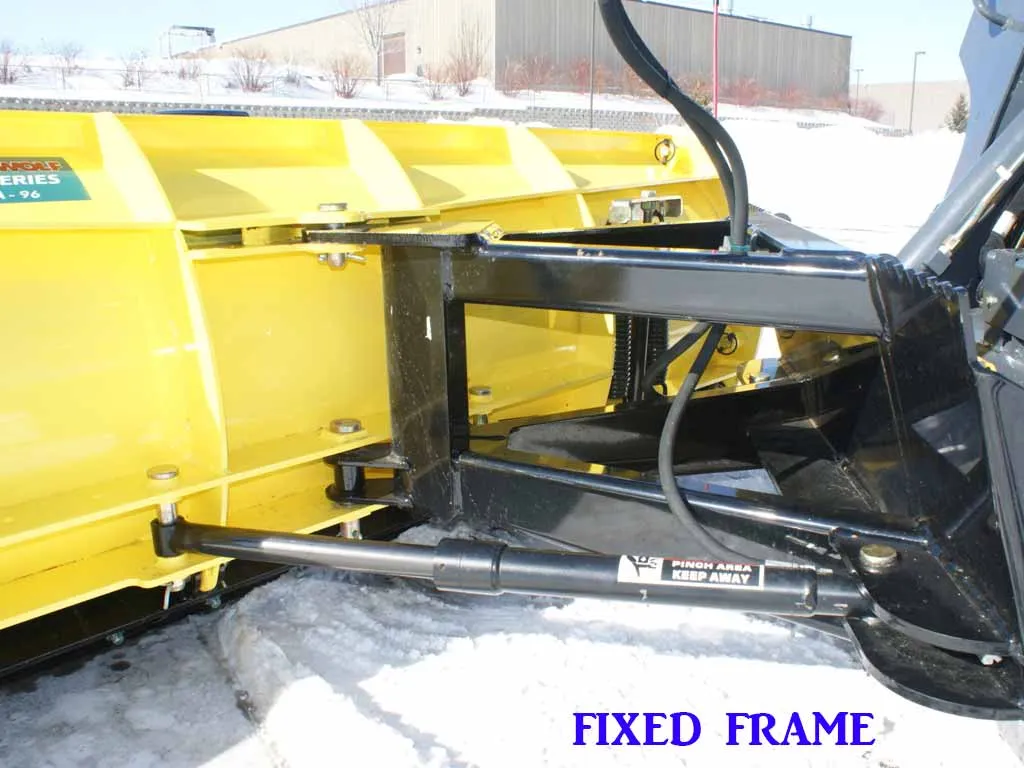

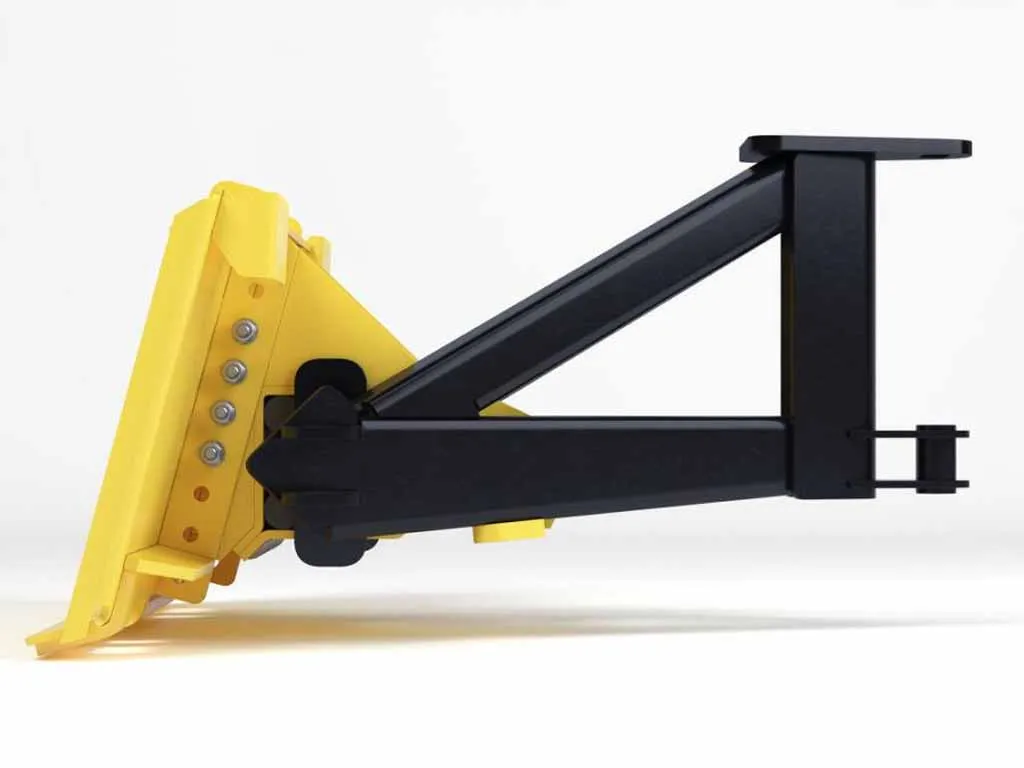

- Dual Pivot A-Frame - Twice the strength, half the worries! Over 270 lbs. of tough!
- Nitro Hydraulic Cylinders - Five times more salt-resistant than industry standard chrome cylinders
- Plowing Efficiency - The SnowWolf Ultra has a very tightly rolled moldboard and angles a full 35° to maximize efficiency and minimize fuel and horsepower requirements
- Massive Construction - The SnowWolf Ultra is designed to take abuse from the largest skid loaders. At approximately 100 pounds per foot of plowing width, you know the Ultra means business.
- Oscillation - The Ultra's exclusive oscillation design allows the blade to follow the contours of the plowing surface.
SPECIFICATIONS
| Model Number | Ultra-72 | Ultra-84 | Ultra-96 | Ultra-108 | Ultra-120 | Ultra-132 | |
| Blade Width | 6' | 7' | 8' | 9' | 10' | 11' | |
| Blade Width at Full Angle | 59" | 68.8" | 78.6" | 88.5" | 98.3" | 114.6" | |
| Blade Height | 30" | 30" | 30" | 30" | 30" | 30" | |
| Weight (lbs.) (actual-not ship weight) | 732 | 774 | 816 | 858 | 920 | 962 | |
| Moldboard Gauge | 10 Ga. | 10 Ga. | 10 Ga. | 10 Ga. | 10 Ga. | 10 Ga. | |
| Trip Springs | 4 Ext | 4 Ext | 4 Ext | 4 Ext | 4 Ext | 4 Ext | |
| Wear Shoes | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. | |
| Cutting Edge | 1/2" x 6" | ||||||
| Angle Rams | 1-1/2" x 13" Nitro Steel | 2" x 13" Nitro Steel UltraMAX | |||||
| Vertical Ribs | 6 | 6 | 6 | 6 | 6 | 6 | |
| Moldboard Radius | 14" | 14" | 14" | 14" | 14" | 14" | |
| Full Down Pressure | Yes | Yes | Yes | Yes | Yes | Yes | |
| Universal Skid Steer Compatible | Standard | ||||||
| Cross Over Relief Valve | Opt. | Opt. | Std. | Std. | Std. | Std. | |
| SoftTouch™ Cutting Edge | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. | |
| UltraMAX HD Cylinder Kit | Opt. | Opt. | Opt. | Opt. | Opt. | Std. | |
| High Carbon Curb Guards | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. | |
