DESCRIPTION

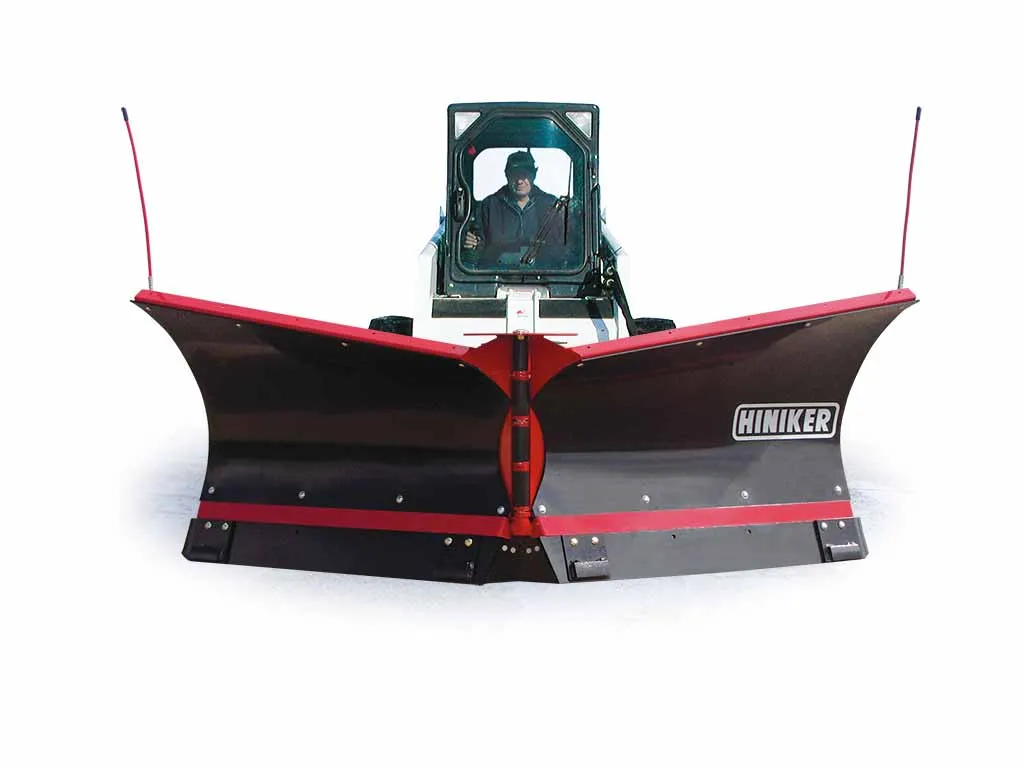

Skid Steer V-Plow
Series 29285/29295 Snowplow

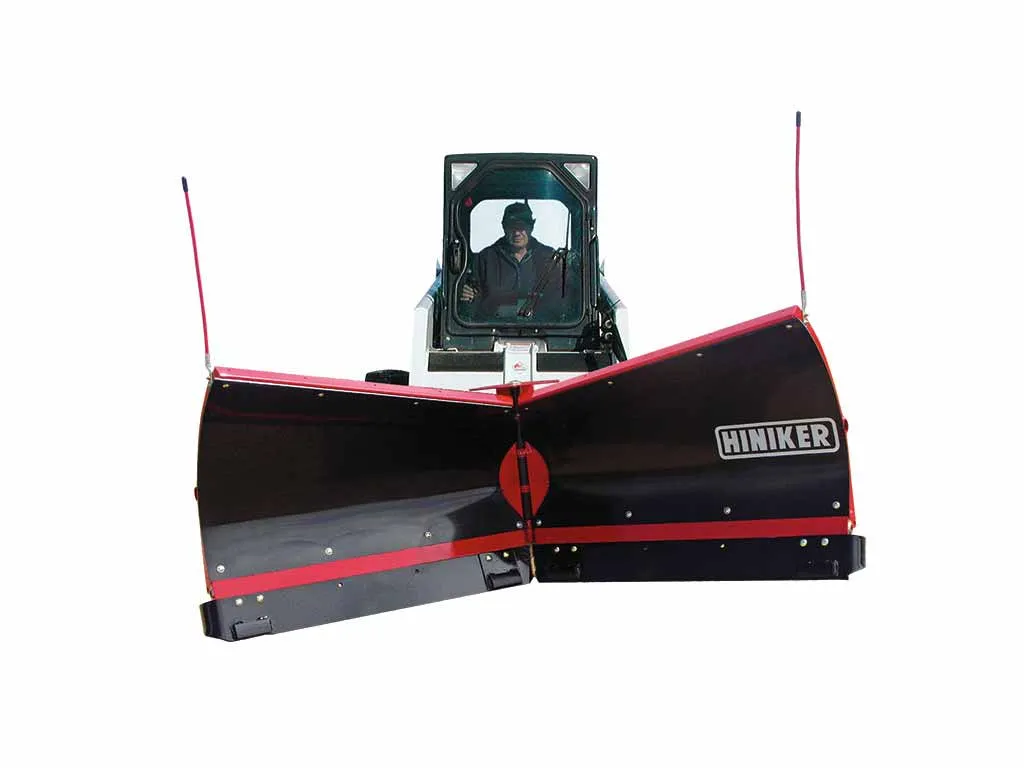

Versatile Skid Steer V-Plows operate in Vee, scoop, angle or straight positions.
- Torsion spring trip-edge protection
- Two-way hydraulics provide full moldboard control in Vee, scoop, left, right or straight modes
- Box-section steel-tube frame for long-term strength
- Abrasion-resistant sheathing protects hydraulic hoses from wear
- Universal mount plate for easy hook-up
Features
- Free floating blade with 15 degrees of horizontal oscillation to clean uneven surfaces
- Rapid, easy hook up on skid steers equipped with universal mount plate
- Box-section tubular steel frames for added strength

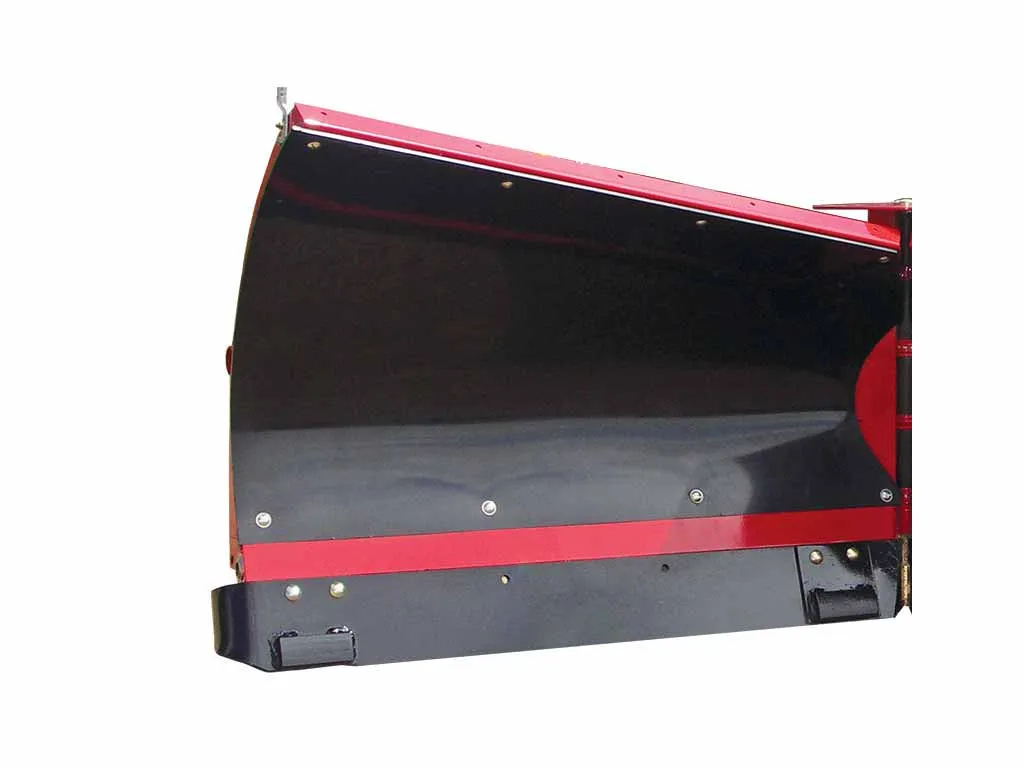

- Blade comes complete with replaceable cutting edges and adjustable skid shoes
- Includes electrical wiring harness and hydraulic hoses
- Electro-hydraulic valve included with V-Plow and C-Plow models (not required for conventional or scoop plows)
Operating Requirements
- Universal Mounting Plate
- Auxiliary hydraulics outlets (one pair) with 2100 psi. pressure relief setting
- Dealer or user must supply appropriate hydraulic couplers
SPECIFICATIONS
| Skid Steer V-Plow Specifications | ||
|---|---|---|
| MODEL | 29285 | 29295 |
| BLADE WIDTH | 8 1/2′ | 9 1/2′ |
| BLADE HEIGHT | 30″ | |
| BLADE THICKNESS | 1/4″ HMW Poly | |
| TORSION TRIP SPRINGS | 6 | |
| WEIGHT | 677 lbs. | 716 lbs. |
